Answers to common questions about the A&D FX-123, precision reloading, AutoTrickler V4, Meehl Solutions, SuperTrickler, AutoDropper, Ingenuity Precision, Printed Precision, OpenTrickler, calibration, setup, connectivity and troubleshooting.
The FX-123 is a precision instrument, not simply another item in a box.
CE Products has been involved in the precision reloading market since 2014 and has extensive experience with A&D precision balances and automated powder dispensing systems.
When you purchase an FX-123 from CE Products, our involvement does not end when your balance ships. Our team can assist with setup, calibration, balance settings, computer communication, trickler integration, troubleshooting and after-sales support.
Yes. The A&D FX-123 provides a 122 g capacity with 0.001 g readability, making it well suited for precision ammunition reloading, powder charge verification, component sorting and other applications requiring milligram-level measurement.
The FX-123 is part of A&D's newer Fortis precision balance platform and is the successor to the widely used FX-120i.
Yes. The FX-123 supports grains (gr) as a weighing unit, making it convenient for precision ammunition reloading applications.
Under suitable conditions, the FX-123 can provide typical stabilization of approximately one second when configured for FAST response.
Actual stabilization time can be affected by vibration, airflow, temperature, static electricity, balance configuration and the weighing environment.
FAST response prioritizes quick reaction from the balance. The FX-123 provides selectable response characteristics so the balance can be adjusted according to the weighing application and environment.
Faster response is valuable for automated powder dispensing, while slower response settings can provide additional display stability in challenging weighing environments.
Not necessarily. FAST response is useful when quick balance response is important, but a slower response setting may provide a more stable display in a difficult weighing environment.
When connecting an FX-123 to an automated powder dispensing system, use the balance settings recommended by the manufacturer of that system.
Air movement can affect milligram-level measurements. The breeze break helps shield the weighing pan from drafts and moving air that could otherwise cause unstable readings.
This can be particularly important when weighing small powder charges or other lightweight samples.
The FX-123 is used as the precision weighing platform for a growing number of automated powder dispensing and trickler systems built around the A&D FX/FZ balance platform.
Systems and ecosystems include:
Compatibility and required configuration can vary by system generation, firmware, cable and hardware configuration. Always verify the current requirements with the manufacturer of your specific powder dispensing system.
If you are purchasing an FX-123 from CE Products for a particular system, tell us which system you are using. We can help with questions relating to the FX-123 balance and its configuration.
Yes. AutoTrickler officially lists the new A&D FX-123 as compatible with AutoTrickler V4.
CE Products supplies standalone FX-123 balances as well as complete FX-123 + AutoTrickler V4 systems and can assist with balance setup, programming and communication questions.
When an FX-123 is purchased from CE Products as part of a complete AutoTrickler V4 package, the balance can be configured for AutoTrickler operation before shipment.
If you already own an AutoTrickler and are purchasing the FX-123 separately, contact us if you need assistance with the required balance settings.
Yes. CE Products has been involved in the precision reloading market since 2014 and has extensive experience supplying A&D precision balances for automated powder dispensing applications.
Because we work with both A&D balances and complete AutoTrickler systems, our team understands the relationship between the balance, communication settings and dispensing equipment.
Yes. Meehl Solutions specifically identifies the FX-123 as a compatible balance and offers its trickler with a programmed FX-123 as a complete system option.
If you are purchasing an FX-123 from CE Products for use with a Meehl Solutions system, let us know so we can help with FX-123 balance-related questions.
SuperTrickler is designed for use with compatible A&D FX/FZ Series precision balances using the balance's serial communication interface.
Confirm the current FX-123 setup requirements with SuperTrickler for your specific system generation and firmware.
The FX-123 is used within the A&D FX/FZ precision balance ecosystem supported by automated dispensing systems such as AutoDropper.
Because AutoDropper hardware and software can vary by generation, confirm the required FX-123 cable, communication settings and current compatibility for your particular system before setup.
The A&D FX/FZ balance platform is used with a number of precision reloading systems, including configurations within the Ingenuity Precision ecosystem.
Check the requirements for your particular Ingenuity Precision system, including the balance interface, mounting arrangement, communication settings and any required accessories.
Yes. Printed Precision currently offers its trickler system with a pre-programmed A&D FX-123 balance.
CE Products has experience supplying A&D precision balances into the precision reloading market and can assist with questions involving the FX-123 balance itself.
Support for the Printed Precision trickler hardware and software should be obtained directly from Printed Precision.
The FX-123 can be used as the precision weighing platform for compatible OpenTrickler and DIY systems designed around the A&D FX/FZ communication platform.
DIY and open-source systems can vary significantly in electronics, firmware, cables and programming, so compatibility should always be confirmed for the particular build being used.
CE Products can assist with questions relating to the FX-123 balance, its settings and its communication interface.
No. Different automated powder dispensing systems can require different communication settings, response settings, cables, mounting arrangements or programming.
Do not assume that settings used for AutoTrickler V4 will automatically be correct for Meehl Solutions, SuperTrickler, AutoDropper, Ingenuity Precision, Printed Precision or an OpenTrickler system.
Follow the instructions provided by your trickler manufacturer. If you purchased your FX-123 from CE Products, our team can assist with FX-123 balance configuration questions.
In many cases, yes. One advantage of owning an A&D FX-123 is that the A&D FX/FZ platform is used across multiple precision powder dispensing ecosystems.
This can give reloaders greater flexibility if they later decide to change dispensing systems without necessarily replacing the precision balance.
The FX-123 may need to be reconfigured when moving between systems, and different cables or mounting components may be required. Always follow the setup requirements for the new system.
Yes. The FX-123 remains a fully functional precision balance when an AutoTrickler or other automated dispensing system is disconnected.
It can be used independently for manual weighing, component sorting, laboratory work, quality control and other precision weighing applications.
If you purchased your FX-123 from CE Products, contact our team.
We can help work through questions involving:
Our involvement does not end when the balance ships.
An E error while using the FX-123 with an AutoTrickler can be caused by an incorrect balance or communication setting.
Check that the balance settings match the required AutoTrickler configuration and verify the connection between the balance and AutoTrickler.
If you purchased your FX-123 from CE Products and are having difficulty, contact our technical team and we can help work through the FX-123 configuration with you.
For best precision weighing performance, allow the FX-123 to remain connected to power for at least approximately 30 minutes before use.
This allows the balance and weighing system to stabilize before precision measurements are made.
Place the FX-123 on a solid, stable and level surface away from vibration, direct airflow and rapid temperature changes.
Whenever possible, avoid placing the balance:
Environmental conditions become increasingly important when measuring at the milligram level.
At 0.001 g readability, environmental conditions can have a noticeable effect on balance performance.
Common causes of unstable readings include:
If you continue experiencing unstable readings after checking the environment, CE Products can help troubleshoot the FX-123 and its setup.
Yes. Static electricity can affect precision weighing, particularly in dry environments and when weighing powders, plastics or other materials that readily develop a static charge.
If you are experiencing unusual, inconsistent or drifting readings, static electricity is one environmental factor worth investigating.
Carefully remove loose powder with an appropriate soft brush, working the material away from the weighing mechanism and openings in the balance.
Avoid aggressive cleaning methods that could force powder or debris into the balance.
Compressed air is not recommended for removing powder from a precision balance. Blowing material around the weighing pan can force powder or debris through openings and into the balance.
Carefully using an appropriate soft brush to move loose material away from the weighing mechanism is the better approach.
No. The standard FX-123 uses external calibration.
If you require an A&D balance with an internal calibration weight, the corresponding FZ Series models provide internal calibration.

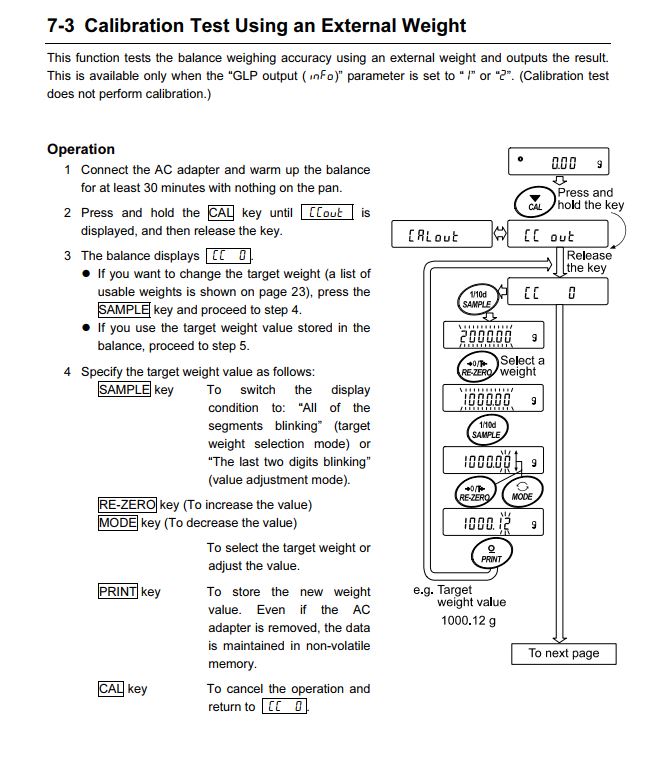

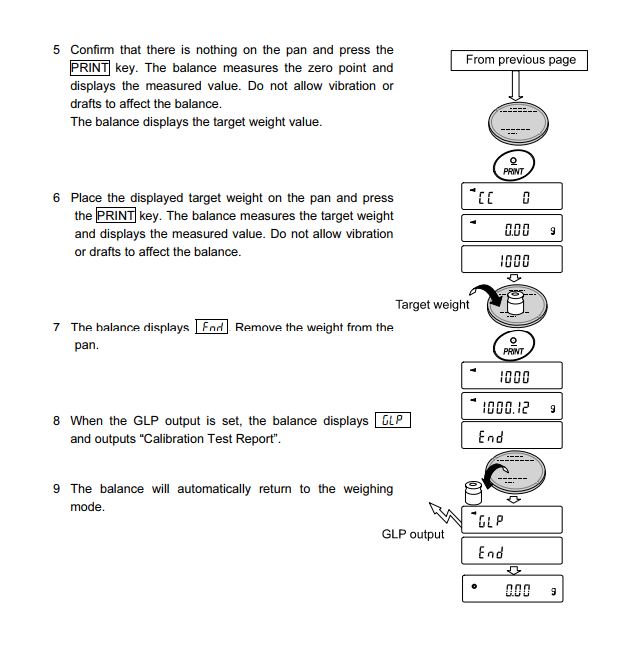

The FX-123 supports external sensitivity adjustment using appropriate calibration weights specified by A&D. A 100 g calibration weight is commonly used with the FX-123.
CE Products can help recommend an appropriate calibration weight if you are unsure which weight is suitable for your application.
Because the standard FX-123 uses external calibration, an appropriate external calibration weight is required when performing a sensitivity adjustment.
Having a suitable calibration weight available also allows you to periodically verify the balance after installation, relocation or environmental changes.
Calibration should be checked when the balance is initially installed, after it has been relocated, or when there has been a meaningful change in the operating environment.
For precision weighing applications, periodic verification with an appropriate calibration weight is also good practice.
Yes. The FX-123 includes communication interfaces that allow it to connect with compatible computers, software and external equipment.
This makes the FX-123 useful not only for precision reloading systems, but also for laboratory and quality-control data collection applications.
Yes. The FX-123 can communicate with compatible computer systems for weighing data collection and other applications.
The appropriate communication method and balance settings depend on the software and connection being used.
If you purchased your FX-123 from CE Products, tell us what software or system you are trying to connect and our team can help determine the appropriate balance configuration.
Yes. The FX-123 can be used with compatible data collection systems and software to transfer weighing results to a computer.
Customers may use compatible A&D software or develop their own connection using the balance communication protocol.
If your goal is to capture FX-123 readings in Excel, LabVIEW, SPC software or another computer system, contact CE Products with your application and we can help identify the appropriate connection method.
Yes. Disconnecting the AutoTrickler does not prevent the FX-123 from being used as a normal standalone precision balance.
The balance can be configured for compatible PC data communication or other supported external equipment when the AutoTrickler is not connected.
Communication settings may need to be adjusted depending on the device or software you are connecting.

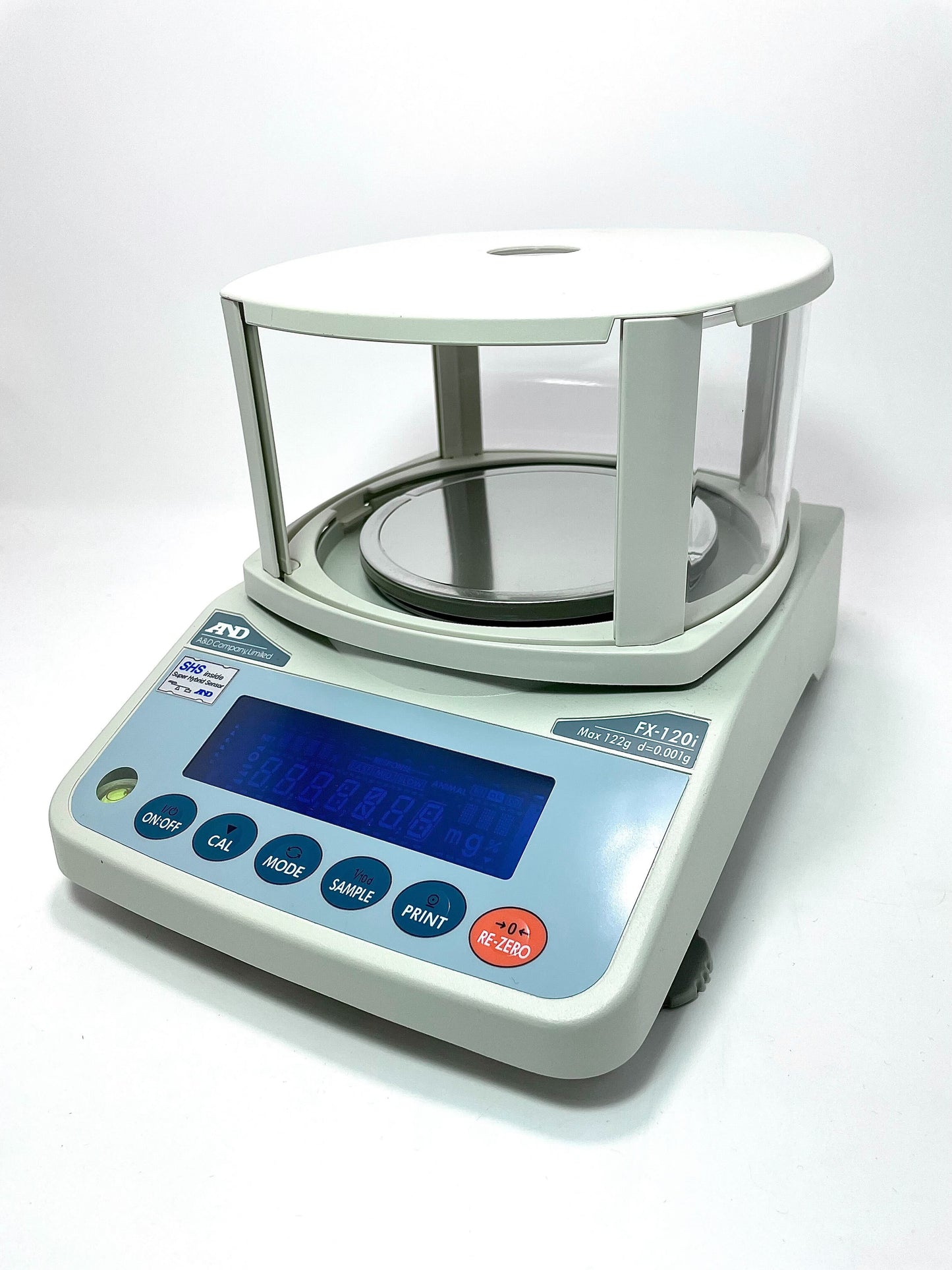

The FX-123 is part of A&D's newer Fortis generation and succeeds the widely used FX-120i platform.
Both are 122 g × 0.001 g class precision balances and both have been used extensively for precision weighing and reloading applications.
The FX-123 incorporates A&D's newer balance platform, updated communication capabilities and additional protection and usability features.
Both balances are part of A&D's Fortis platform and provide the same general capacity and readability class.
The major difference is calibration. The FX-123 uses external calibration, while the FZ-123 incorporates an internal calibration weight for convenient internal sensitivity adjustment.
The standard FX-123 is intended for normal precision weighing environments.
The FX-123WP adds IP65 dust and water protection for applications requiring a more protected weighing platform.
If you are unsure which model is appropriate, CE Products can help compare the models based on your application and environment.
For most precision reloading applications performed in a clean, controlled indoor environment, the standard FX-123 is generally the appropriate choice.
The WP version is more relevant when additional protection from dust, water or cleaning requirements is needed.
No. The standard FX-123 is not the IP65 version.
For applications requiring IP65 dust and water protection, A&D offers the separate FX-123WP model.
The standard FX-123 is primarily intended for process weighing, laboratory work, quality control and precision weighing applications rather than legal-for-trade commercial transactions.
If your application requires a legal-for-trade approved balance, contact CE Products and we can help determine the appropriate model and approval requirements.
Yes. Tell us what you are weighing, where the balance will be installed and how you intend to use it.
Our team can help determine whether the standard FX-123, internally calibrated FZ-123, protected FX-123WP or another A&D balance is the better fit for your application.
The FX-123 may be the same balance wherever you buy it. The support behind it is not.
Precision equipment sometimes requires more than simply opening the box and turning it on. Questions can arise involving calibration, environmental conditions, balance settings, computer communication, automated powder dispensing systems and troubleshooting.
CE Products has been involved in the precision reloading market since 2014 and has extensive experience with A&D precision balances and automated powder dispensing applications.
When you purchase your FX-123 from CE Products, you have access to an experienced team before and after the sale.
Contact CE Products.
Our goal is not simply to ship you a balance.
If you purchased your FX-123 from us and later encounter a setup, technical, communication, service or warranty issue, our team can help troubleshoot the situation and determine the appropriate next step.
Having access to experienced technical support after the sale is one of the major advantages of purchasing precision equipment from CE Products.
CE Products can assist customers who purchase their FX-123 from us with questions involving:
Our team works with A&D precision balances regularly, so you have access to people who understand the product rather than simply an online order desk.
The FX-123 may be the same balance wherever you buy it. The support behind it is not.
CE Products has been involved in the precision reloading market since 2014 and has extensive experience with A&D precision balances, AutoTrickler systems and precision weighing applications.
When you purchase from CE Products, our involvement does not end when the balance ships. Our team can assist with product selection, setup, calibration, balance settings, computer communication, trickler integration, troubleshooting and after-sales support.
Anyone can sell you an FX-123. Our goal is to make sure yours works the way it should.
Whether you are selecting your first precision reloading balance, configuring an automated powder dispensing system, connecting your FX-123 to a computer or troubleshooting an existing setup, the CE Products team is here to help.
Buy the FX-123 from people who know the FX-123.
